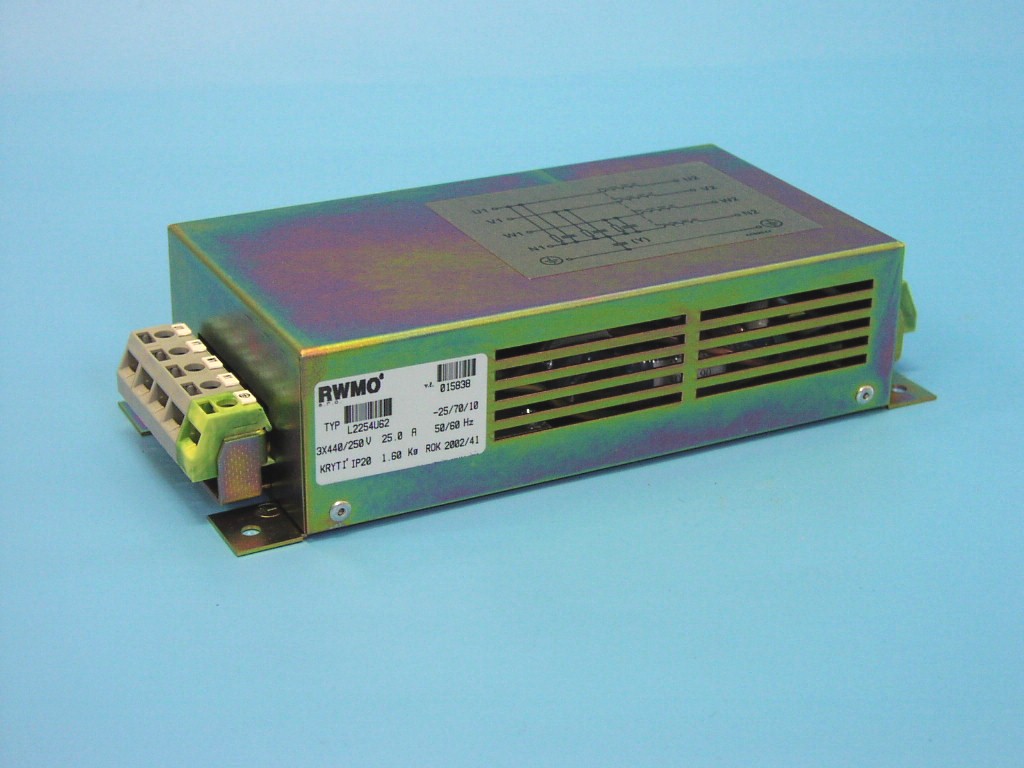

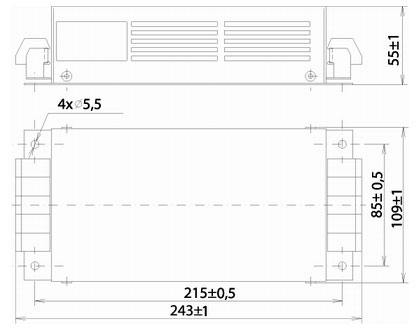

Four-wire filters
Four-wire filtres
Technical data
-
nominal voltage - model 3x440V/250V/50-60Hz
-
nominal current - see table
-
leaking current - see table
-
specific dielectric strength between terminals 1.000V DC, between terminals and case 3.000V DC
-
IP20 protection
-
nominal temperature +40°C
-
category climatic immunity 25/70/10
-
terminal connectors with screws 4 mm2
| Type of filter | Nom. current [A] | Leak. current [mA] | Order number | Weight [kg] | Price |
| L2104U62 | 10 | <1,7 | 371512904008 | 1,4 | price |
| L2164U62 | 16 | <1,7 | 371512904006 | 1,4 | price |
| L2254U62 | 25 | <1,7 | 371512904007 | 1,6 | price |
| LU324P62-10 | 32 | <1,7 | 371512904016 | 1,6 | ceník |
|
Table - Type of filter |
|||
|
NC |
filters for convertors |
N |
L element- modification |
|
NM |
filters for convertors |
P |
p - element |
|
NL |
filters for convertors |
C |
dual filters for convertors |
|
NA |
L element sealed |
A |
L element sealed |
|
NB, ND |
L element sealed |
S |
special model |
|
L |
L element |
F |
filters for Faraday boxes |
|
M |
L element- modification |
|
|
| Table - Leaking current max. | |||
| 0 | no limit | 6 | 1.7 mA |
| 1 | 0.75 mA | 7 | 20 mA |
| 2 | 3.5 mA | 8 | 1.5 mA |
| 3 | 10 mA | 9 | other |
| 4 | 40 mA | N | none |
| 5 | 0.35 mA | ||
-
L type filters - lowpass filters are designed to suppress radio interference in the frequency band 0.15 - 30MHz
-
the filters are attached to a metal frame connected to the skeleton with two M4 screws (from 10A with screws M5)
-
the filters are connected in such a way that alignment of the suppressed (inlet) and unsuppressed (outlet and all other) wires does not occur
